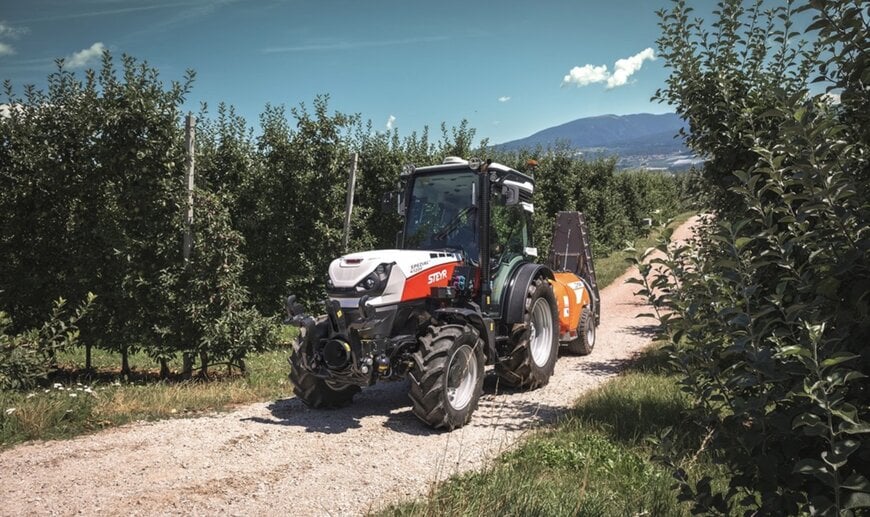

Specialty Tractor Technology for Orchard Operations

Managing high-density orchards, vineyards, and hop yards demands specialised mechanisation capable of navigating narrow row spacing and irregular terrain while operating demanding implement combinations. High-value perennial crop cultivation requires consistent ground speed control during spraying, mowing, and harvesting passes, where stepped transmissions often struggle to match optimal engine operating points with variable ground speeds. STEYR addresses these operational constraints with the launch of the Spezial F CVT, introducing continuously variable transmission engineering and precision farming technology into a dedicated specialty tractor platform.

Stepless Drivetrain Engineering and Powertrain Management
The operational limitation of standard mechanical transmissions in specialty farming centers on fixed gear ratios, which force operators to balance engine revolutions per minute against required field speeds. The STEYR Spezial F CVT resolves this through the S-Control CVT, a stepless continuously variable transmission that decouples wheel speed from internal combustion engine speed.

Power is supplied by an FPT Industrial 3.6-litre four-cylinder F36 diesel engine across three models rated from 100 to 120 hp, designated as the 4100, 4110, and 4120 Spezial F CVT. To prevent thermodynamic bottlenecks caused by airborne organic debris common in hop yards and orchard mowing, the engine bay integrates a reversible cooling fan that expels trapped material from the radiator core during field passes. Operating range between refuelling stops is maintained through a 104-litre fuel reservoir.

The stepless drivetrain delivers efficiency gains during transport and road cycles. The transmission reaches a road speed of 50 km/h at 1,780 rpm in ECO mode, and sustains 40 km/h at 1,500 rpm. By maintaining low engine speeds at road velocity, the powertrain lowers fuel consumption and reduces engine wear during inter-field transport.

Closed-Centre Load-Sensing Hydraulics for Multi-Implement Operations
Specialty crop management frequently requires multiple simultaneous tasks in a single pass, such as under-vine weeding combined with intermediate row mowing or foliage trimming. These concurrent operations require sustained hydraulic flow without pressure drops that could stall hydraulic motors or delay actuator movement.

The Spezial F CVT incorporates a closed-centre load-sensing (CCLS) hydraulic system with a delivery rate of 115 litres per minute. This circuit feeds up to five rear electro-hydraulic remote valves and optional mid-mount valves on the left-hand chassis. The CCLS architecture ensures variable-displacement oil flow on demand, reducing parasitic power losses when implements are idle while delivering sufficient hydraulic output to drive multi-motor implement configurations. Manoeuvrability in confined headlands is managed via adaptive steering geometry, enabling operators to calibrate steering wheel revolutions relative to axle turning angles.

Precision Agriculture and In-Cab Workflow Integration
Specialty crop production increasingly relies on data logging, accurate repeat passes, and operator safety during crop protection routines. The Spezial F CVT integrates digital farming systems historically reserved for broadacre machines.

Operators manage machine functions and telemetry through the Infomat 1200 touchscreen display, which interfaces with S-Guide automated satellite guidance and the A1000 GNSS receiver. Automated headland sequences are handled by the EasyTronic II management system and S-Turn automated turning logic, which executes row-end maneuvers along orchard perimeters without manual steering intervention. Telemetry and operational data sync directly with the FieldOps digital farm management platform, allowing fleet managers to track machine performance and task completion remotely.

Operator environment considerations focus on noise isolation and chemical safety. The four-pillar cab structure achieves an internal noise level of 69 dB(A) and is isolated by an adjustable cab suspension paired with a suspended front axle and pneumatic seating. To protect operators during plant protection product distribution, the cab air intake system incorporates Category 4 filtration to block chemical aerosols and vapors. Exterior monitoring is augmented by a 12-LED lighting array and a three-channel camera installation covering the rear linkage and side blind spots, while a pneumatic trailer brake valve controls trailing implement deceleration.

Trade Show Presentation
STEYR will present the Spezial F CVT to the agricultural equipment sector at the EIMA International 2026 exhibition in Bologna, Italy, scheduled from 10 to 14 November 2026.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

Specialty tractors operating in the 100 to 120 hp bracket have seen widespread implementation of the EN 15695-1 standard, which defines Category 4 cab overpressurisation and multi-stage carbon filtration performance for operator protection against hazardous plant protection substances. In this power segment, competitive benchmarks include the Fendt 200 V/F/P Vario series and the Same Frutteto CVT. Fendt's 200 Vario range pairs an AGCO Power 3.3-litre engine with a stepless Vario transmission, a 119 l/min load-sensing hydraulic circuit, and an integrated terminal using FendtONE onboard controls. The STEYR Spezial F CVT aligns with these technical benchmarks by combining a 115 l/min CCLS pump, an integrated ISOBUS-compatible Infomat 1200 terminal, and a 50 km/h top transport speed at sub-1,780 rpm, establishing parity with premier stepless architectures in the European orchard and perennial crop sector.
